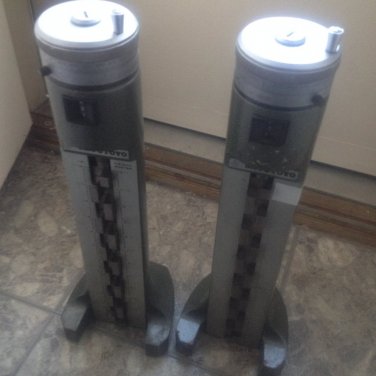

Mitutoyo Height Master Gauge
515-319
.5-12" Range
Graduation: .0001"
Block Pitch Accuracy: +/- .0001"
Parallelism of Block: .0001"
Micrometer Head Accuracy: +/- .0001"
Weight: 20.9 lbs
The E-TYPE HEIGHT MASTER, a slimmer version
of the standard height master, features all essential
specifications required in a versatile height standard.
Features
• Smallest Reading .0001"
Smallest graduation on the micrometer thimble is
.0001" direct. Zero point of the thimble is fully
adjustable for calibration purposes.
• Staggered Measuring Block Configuration
Spacing of the measuring blocks is either 1". With the
staggered block arrangement, both top and bottom
land height at a desired point which can be obtained
without moving the micrometer head.
• Digital Counter .0001"
Three-digit counter provides quick and trouble-free
reading to the thousandths of an inch. From top: tenth,
hundredth and thousandth.
• Riser Blocks for 12" Model
Although the measurable height of the 12" model is
limited, it can be extended to a maximum of 36" by
using a riser block. The E-type Height Master stands
on three carbide pads atop the riser block.
• Dimension: 5.95(W) x 18.5(H) x 5.45(D)
